DETAILSAERO-TRACK - 5ft KIT WITH HD CONNECTORS
PowerTye AERO-Track is a modular anchoring system that works great in trailers, RVs, toy-haulers and more!
These lightweight but strong tracks are made with aircraft-grade aluminum, and feature rollover edges for a cleaner and easier to navigate trailer. Can be screwed to the floor for light-duty work, or bolted for maximize load capacity.
This kit comes with 20x 1in long bolt assemblies so the track and end caps are ready to be mounted right out of the box.
||60 in L x 2 in W x 0.5 in D
|Working Load Limit
|| Up to 1,000 lb. with included Heavy-Duty Connectors

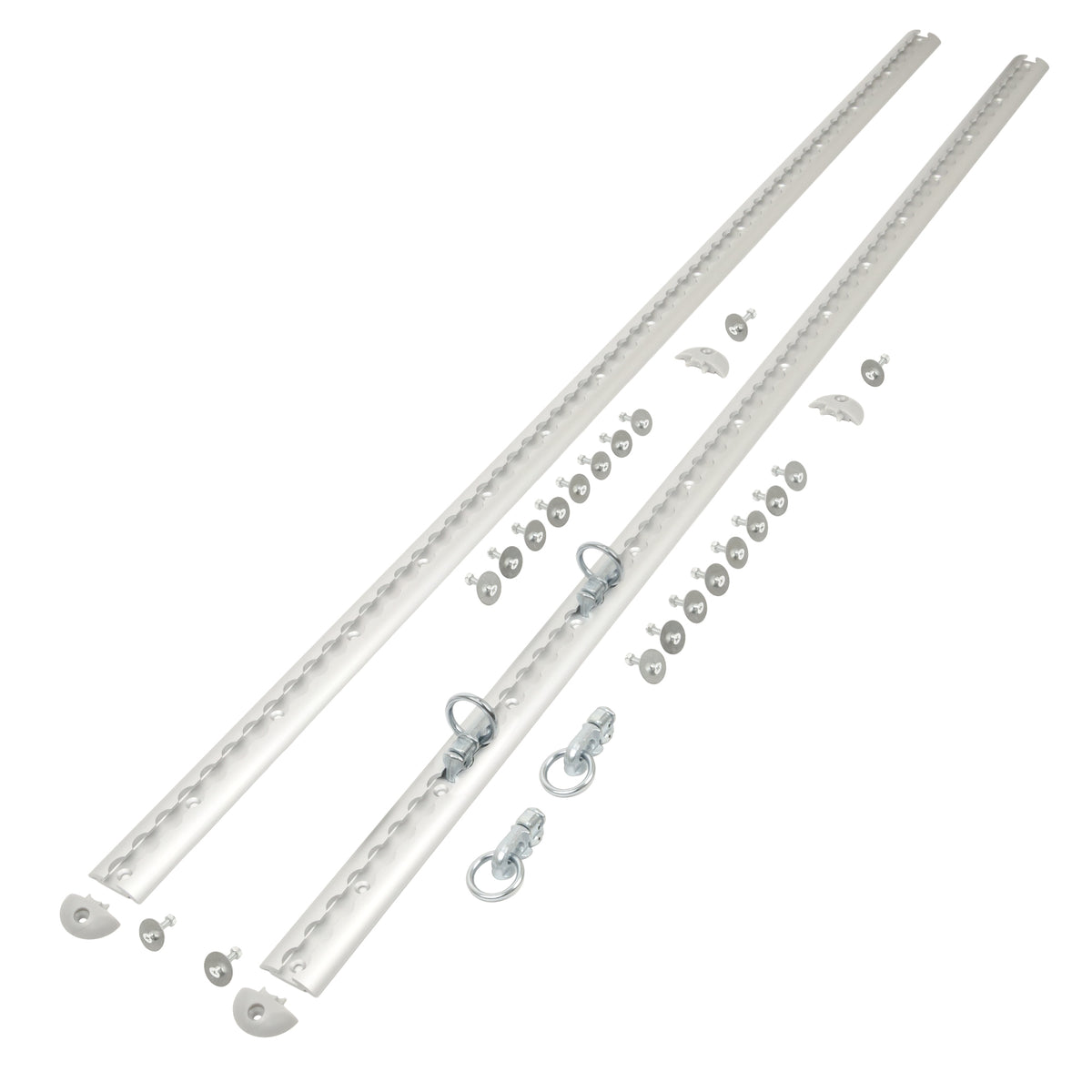

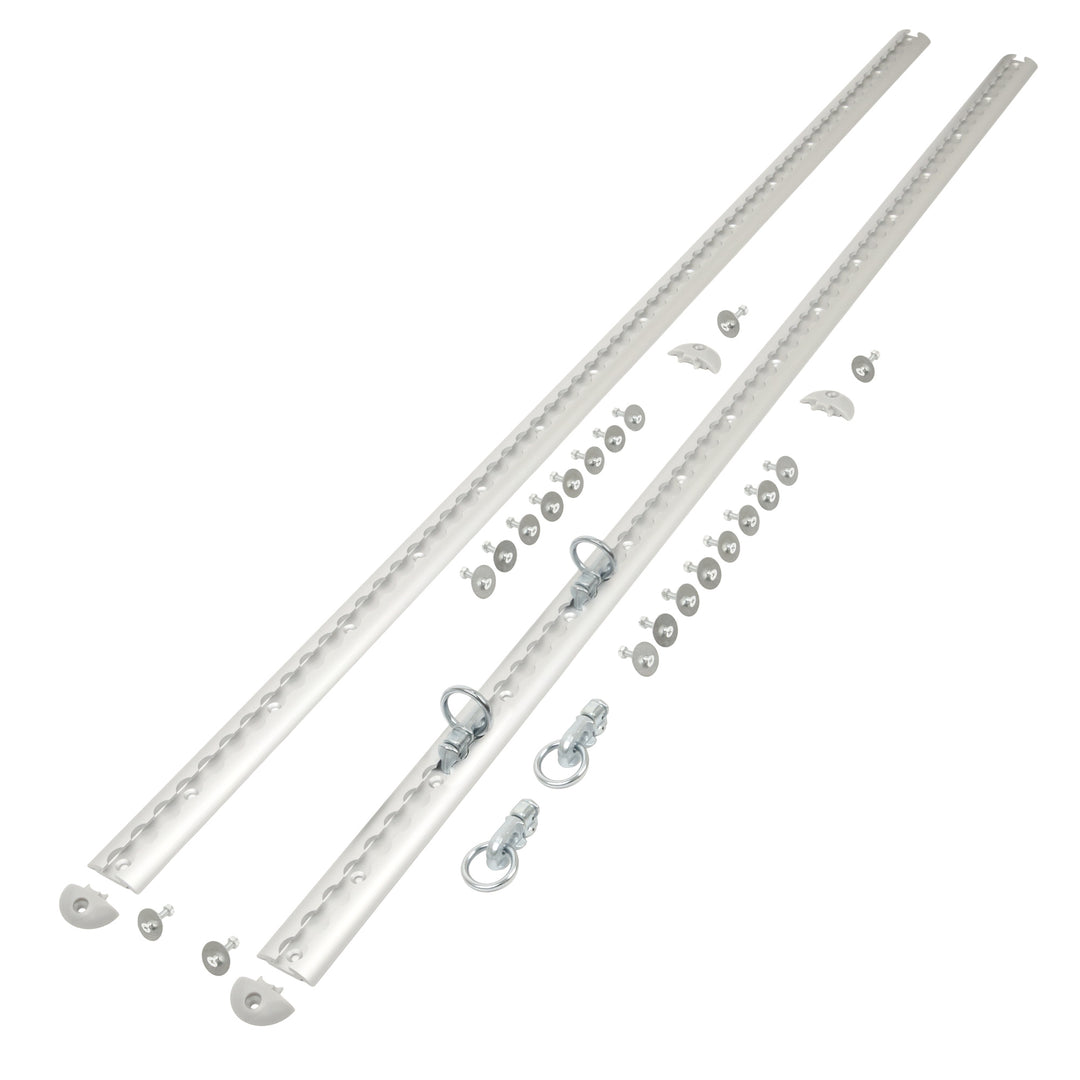

||2x - 5ft Aero-Track rails4x - Heavy-Duty Connectors4x - Aero-Track End-Caps20x - Mounting Bolts (8 per track + 1 for each end cap)
||Aircraft-grade Anodized Aluminum
||Aero-Track Rails - Compatible with PowerTye AEROTrack ConnectorsHeavy-Duty Connectors - Compatible with most standard Airline or "L"-style TracksAero-Track End-Caps - Fits most Horizontal Airline and "L"-style Rails
||Heavy Duty Connectors: Double-Stud anchoring for maximum strength1.25in diameter O-RingSteel Construction (silver-zinc plated)1,000 lb Working Load Limit
||Track Details: 60 Individual Anchoring locations per 5ft track (3/4in diameter)1/4in Mounting holes with Tapered opening, spaced 5in apart (16 holes per track)Mounting Hardware: 6mm x 1 inch long Phillips Flat Head Machine Bolts; 6mm Nylock Nuts; 1.25in diameter fender washers
